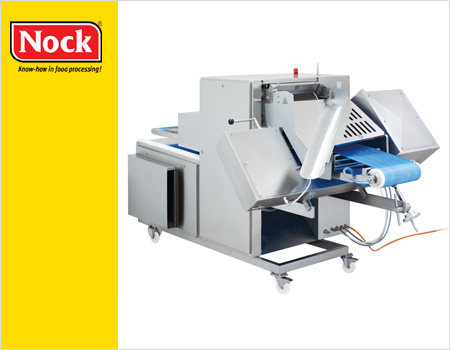

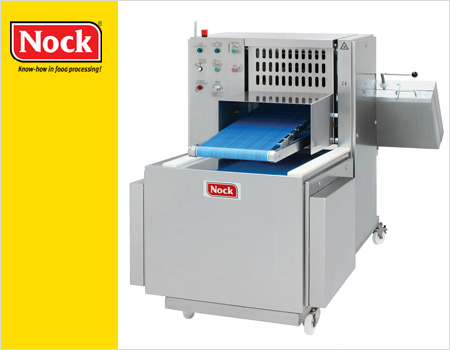

Freeze Drum Skinner TFE 350/550
Features and application range
The NOCK Freeze Drum Skinner TFE 350 and TFE 550 are fish skinning machines with freeze drum technology, in which NOCK puts his long time fish skinning technology compentence and his know how in refrigeration technology from the construction of the NOCK scale ice machines. These results in fish skinning machines with reliable German machine engineering, high quality, high energy efficiency, easy cleaning and compact dimension. Above this the service friendly construction causes low follow-up costs.
- particularly suitable to skin soft (e.g. defrosted) fish fillets and for all types of fish with weak skin
- 2 - 5 % higher yield than other fish skinning machines when thin skinning
- big tolerance to differences in structure and size of the fillets of different kinds of fish
- to cut fish and other products
- skinning depth: up to 10 mm stepless
- cutting width: 370 / 570 mm
- cutting speed: 8 - 20 m/min
- form of application: skin side up
Standard equipment
- energy-efficient freeze drum and refrigeration aggregate for particularly low energy consumption. Hard anodized surface.
- refrigeration aggregate with air-cooled condenser (type A) or with water-cooled condenser (type W)
- rotating band blade with high precision guide for constant and also very thin skinning. Water jets and scraper keep the band blade clean during operation. Easy cleaning without tools. Band blade can be simply and quickly replaced.
- integrated blade sharpening device
- stepless, demanded adjustment of speed through frequency converter
- conveyor equipped with 4 mm round straps (other diameters upon request). Needs not to be removed from the machine for changing the round straps.
- NOCK POWER PLATES®
- mobile machine with lockable castors
